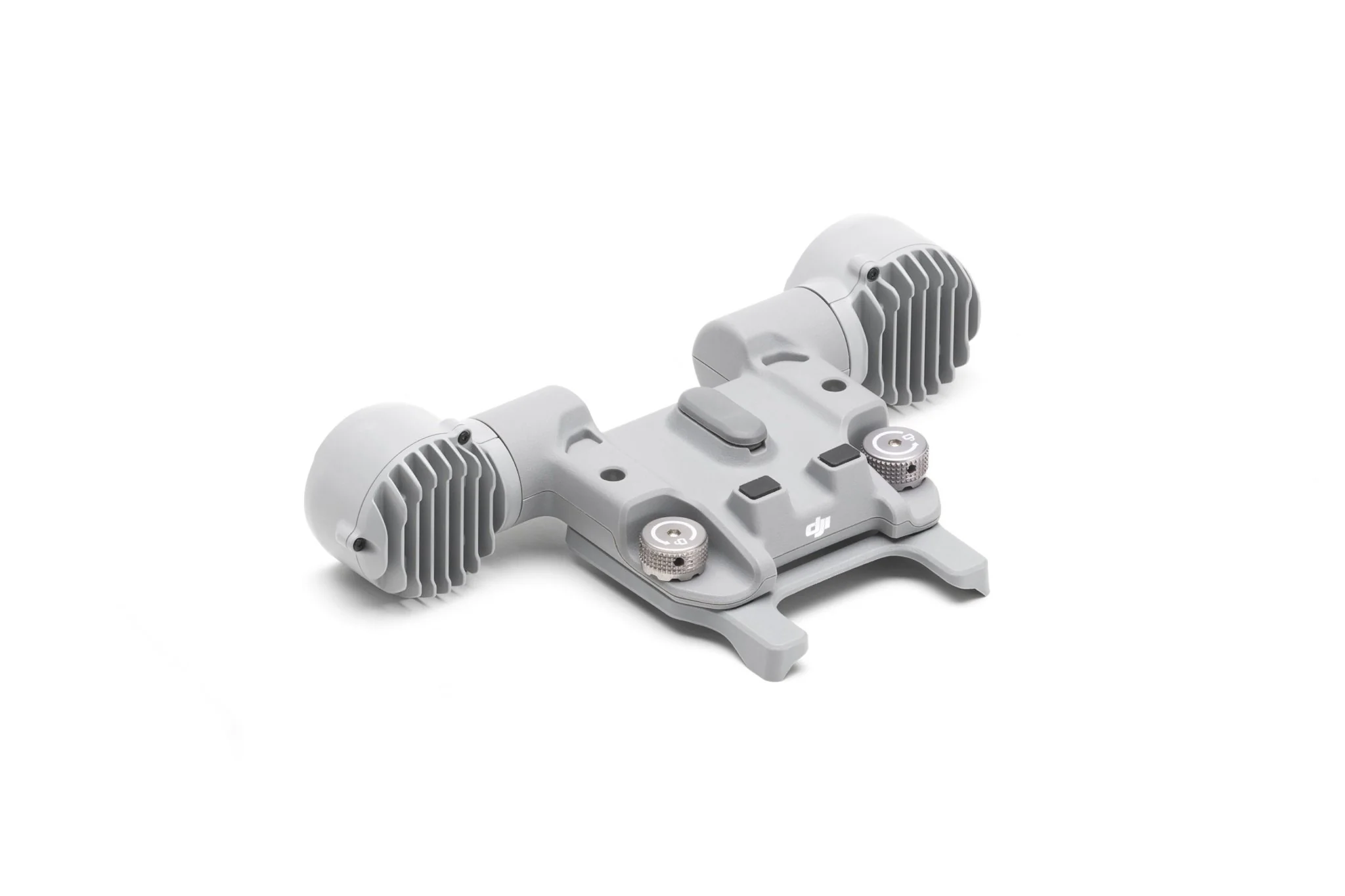

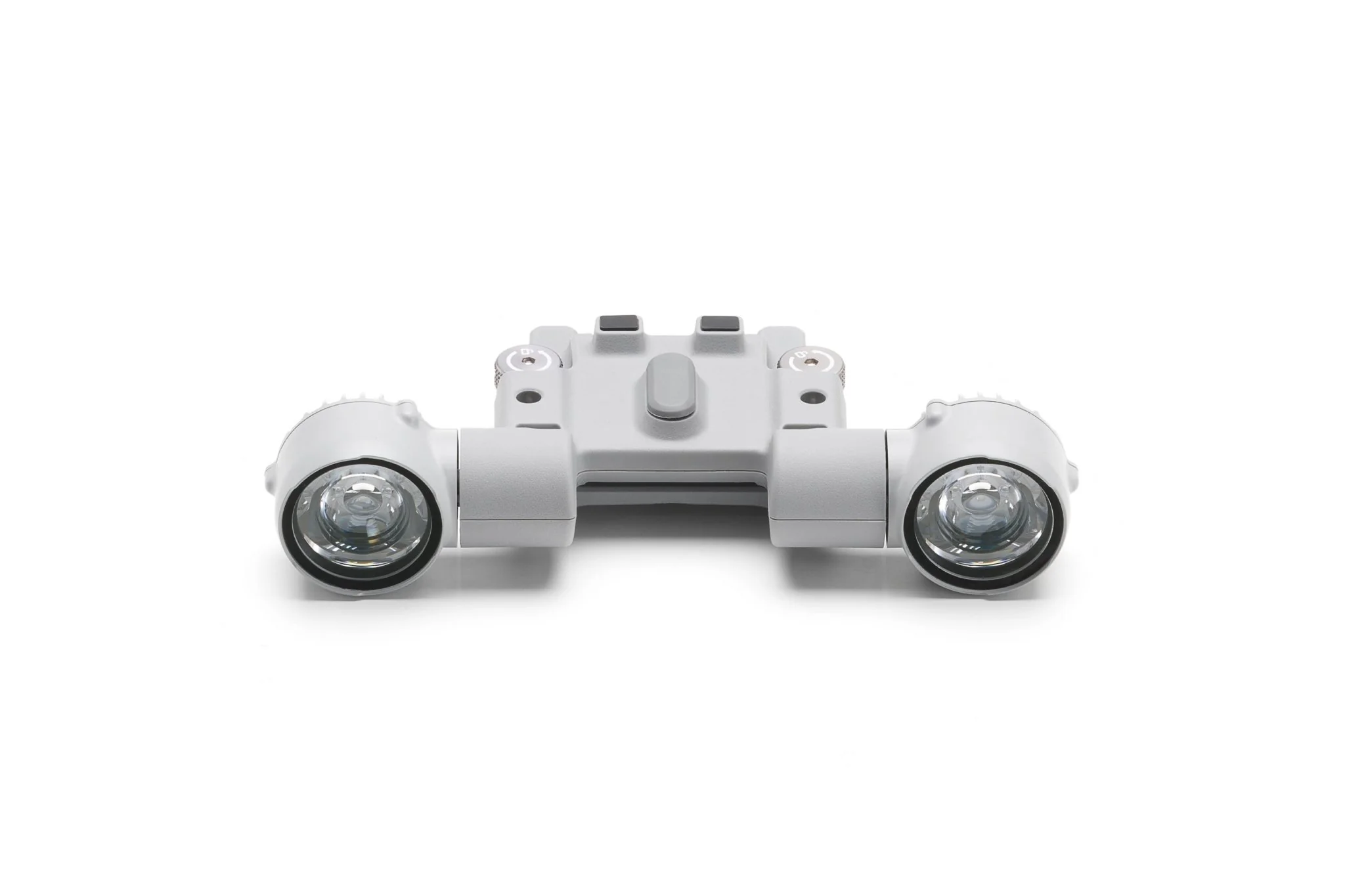

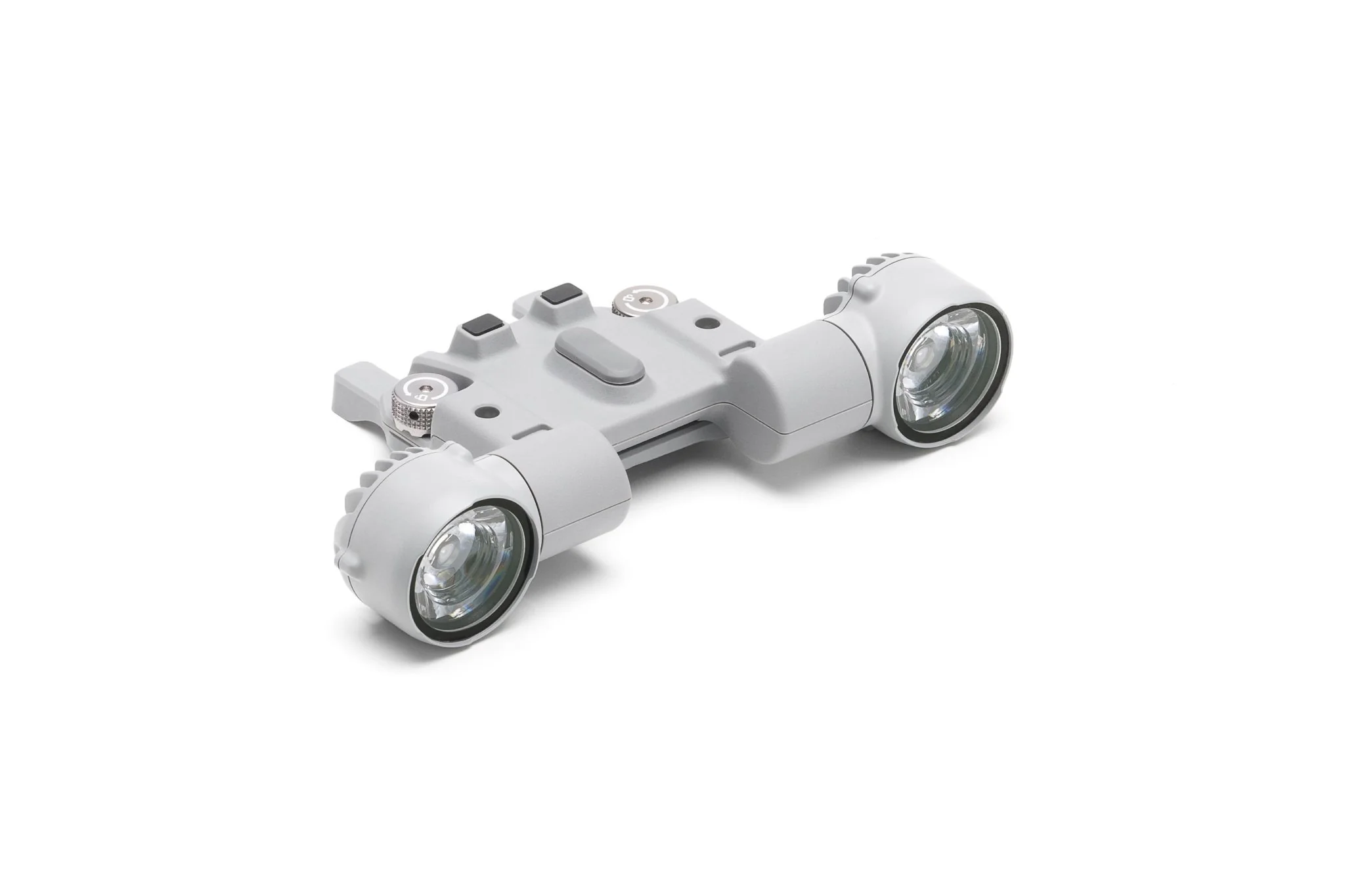

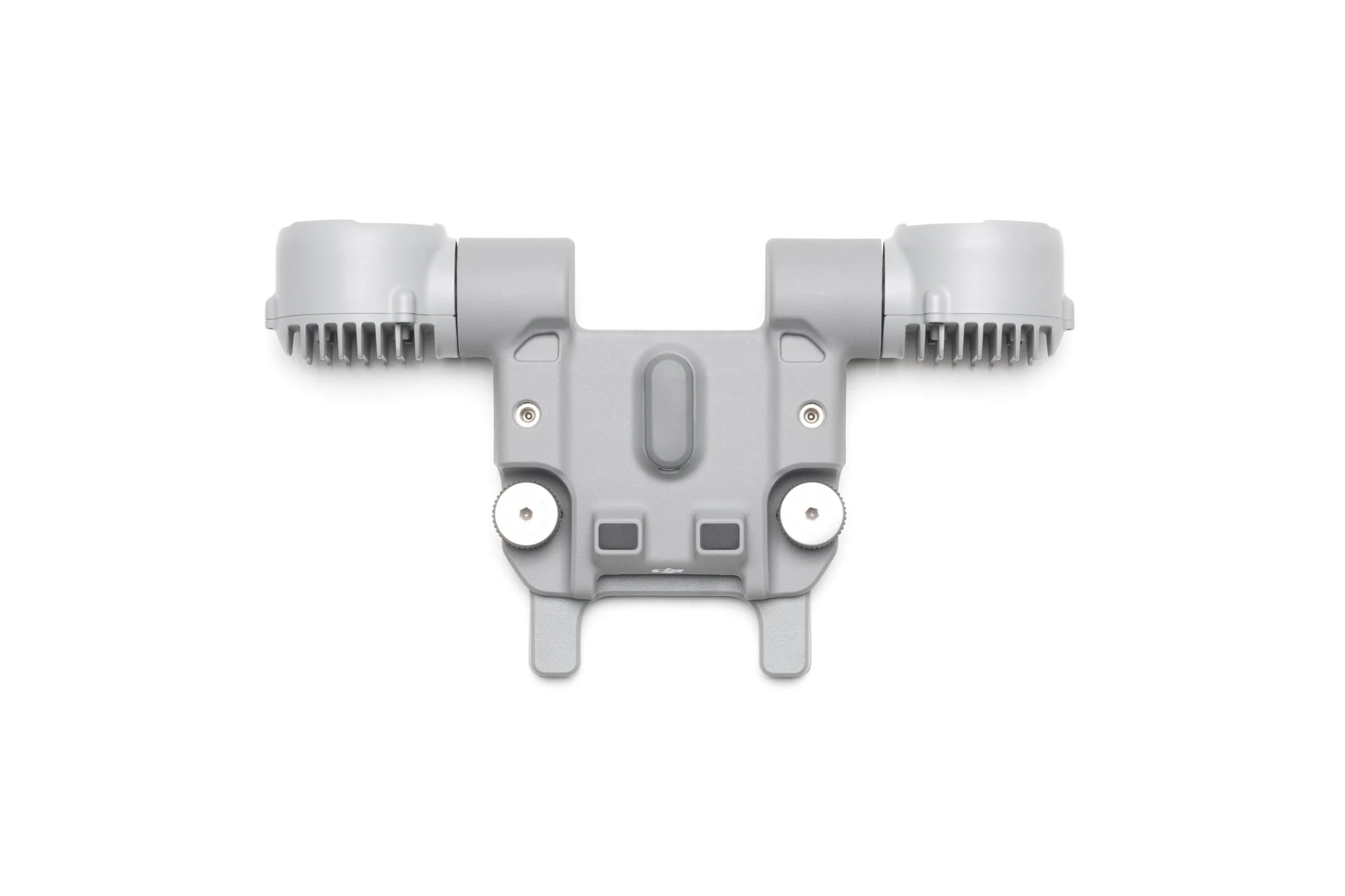

DJI AL1 Spotlight

Overview
The DJI AL1 Spotlight offers two operational modes: always-on and strobe. It provides clear illumination for subjects up to 100 meters away. The spotlight intelligently integrates with the gimbal, ensuring the illuminated area aligns with the camera's view. Additionally, its wide FOV lighting mode illuminates larger areas when in wide-angle mode. The spotlight and speaker can function independently or in combination, catering to diverse operational needs.

Highlights

• Two modes: always-on and strobe.
• Precise illumination that follows gimbal movements.
• Wide FOV lighting for broader coverage.

Tips

1. Secure the installation by tightening screws. For long-term use, use the included hex key to retighten screws after setup.
2. Follow app prompts to activate the spotlight after installation. Update to the latest firmware if prompted.
3. Mounting the spotlight may affect the propulsion and vision system of the Matrice 4 Series aircraft; fly cautiously.
4. Avoid pointing the spotlight directly at people's eyes.
5. The spotlight may become hot with extended use. Handle with care to avoid burns.

In the Box

• Spotlight × 1
• Spare Screws × 2
• Hex Key × 1

Specifications

• Weight: 99 g (with bracket), 91 g (without bracket)
• Dimensions:
  • 95×164×30 mm (L×W×H, with bracket)
  • 79×164×28 mm (L×W×H, without bracket)
• Max Power: 32 W
• Illuminance:
  • 4.3±0.2 lux @ 100 m
  • 17±0.2 lux @ 50 m
• Effective Illumination Angle: 23° (10% relative illuminance)
• Effective Illumination Area:
  • 1,300 m² @ 100 m (Normal Mode)
  • 2,200 m² @ 100 m (Wide FOV Mode)
• Modes: Always-on and strobe
• Gimbal Specifications:
  • Mechanical Tilt Range: -135° to 45°
  • Controllable Tilt Range: -90° to 35°
  • Max Tilt Speed: 120°/s
  • Alignment Accuracy: ±0.1°
• Operating Temperature: -4° to 122° F (-20° to 50° C)
• Mounting: Quick-release hand-tightened screws

Compatibility
Designed for use with DJI Matrice 4 Series aircraft.
